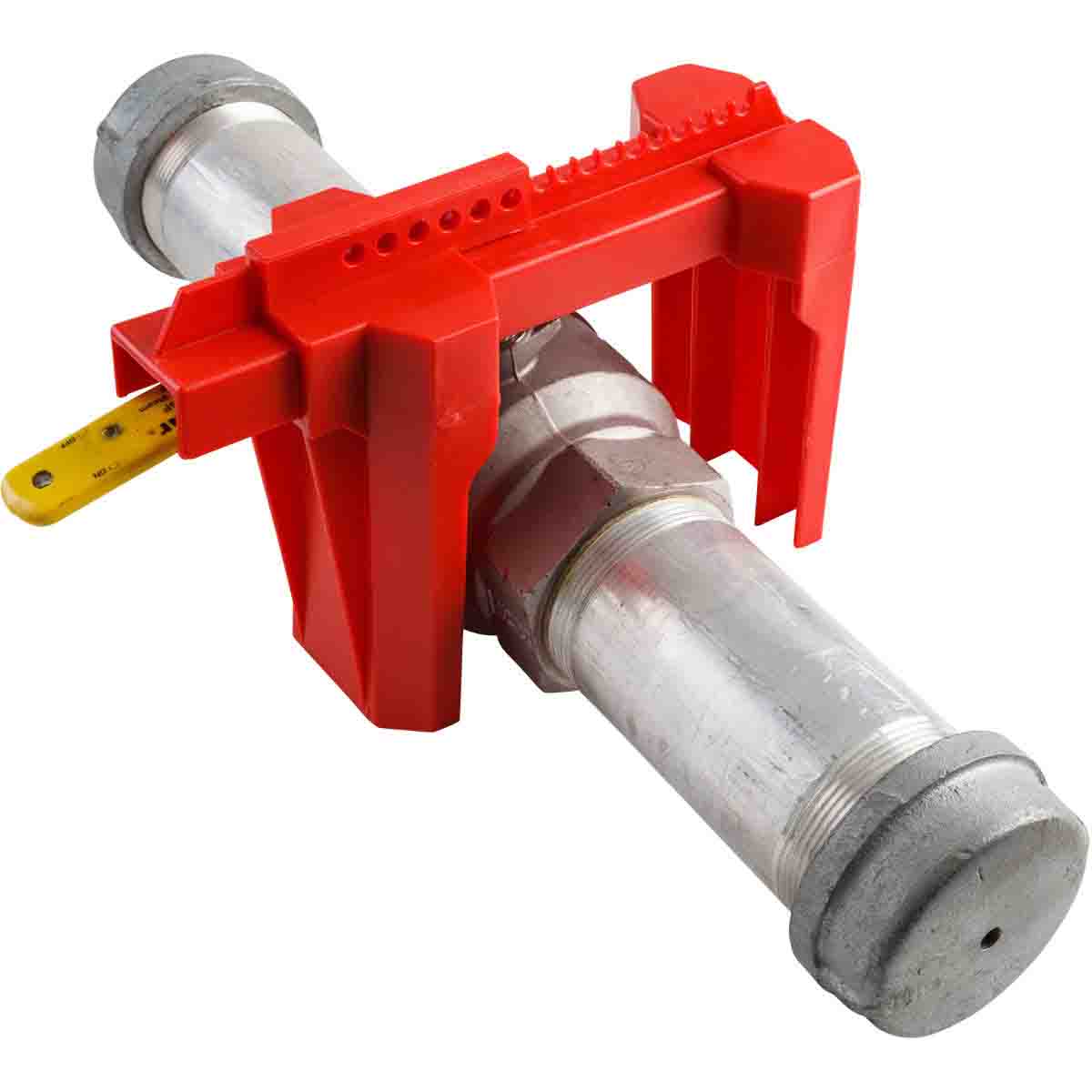

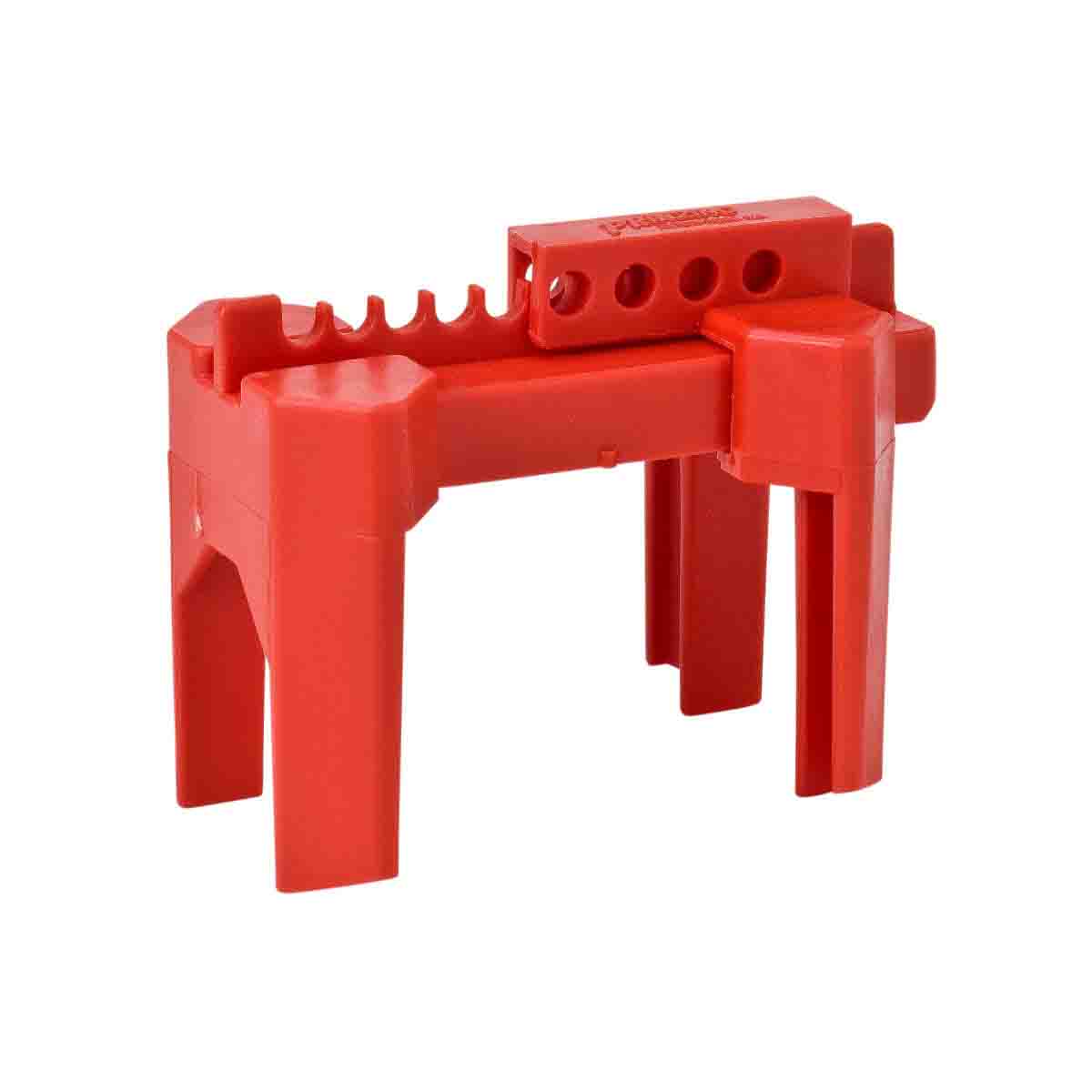

Ball Valve Lockout

Ball Valve Lockout
Ball Valve Lockout - Image 2
Ball Valve Lockout - Image 3
Sale!

Price range: $62.86 through $122.66 inc. GST

Patented design and ultra-tough polypropylene material make these Ball Valve Lockout devices the best choice to assuredly lock out your ball valves.

Key features:
  • Available in 2 sizes
  • Lockout pipes up to 203.2mm diameter
  • Ultra-tough polypropylene resists temperatures from -18° to 79°C (0° to 175°F)
  • Equipping your employees with the proper lockout tools and warning devices can save lives, reduce lost employee time, and cut insurance costs
SKU: N/A Categories: ,

Specifications

Small Ball Valve Lockout Large Ball Valve Lockout
Dimensions Height (mm) 103.38 219.96
Width (mm) 134.37 304.8
Depth (mm) 77.47 118.11
Material Characteristics Material Ultra-tough Polypropylene Ultra-tough Polypropylene
Available Colours Blue, Green, Red, Yellow Blue, Red Yellow
Product Features Maximum Number of Padlocks 2 6
Open or Closed Valve? Both Both
Compatibility Maximum Shackle Diameter (mm) 7.9 7.9
Maximum Handle Thickness (mm) 12.7 25.4
Maximum Handle Width (mm) 25.4 44.45
Maximum Outside Pipe Diameter (mm) 63.5 203.2
Minimum Outside Pipe Diameter 12.7 50.8

Support

VIDEO
Ball Valve Lockout – How to Use
